How to Setup raspberry pi for the first time use

Jul 04, 2019

What is Raspberry Pi?

We’ve all heard about raspberry pi, haven’t we? But there are many questions in every hobbyist and engineers mind about raspberry pi, for example

What is exactly raspberry Pi?
Why raspberry pi is used for?
Is raspberry pi a processor/micro controller/ OS?
I’ve bought a raspberry pi, whats next??
And Most importantly, Shall I learn raspberry PI?

In this tutorial, we’ll try to answer most of these questions. We will discuss raspberry pi and how to get started and using the Raspberry Pi board. We’ll cover everything that needs to be done to start experimenting with Raspberry Pi

So first of all, Raspberry Pi is the name given to a computer Board which was designed in the UK by the Raspberry Pi foundation. The whole idea behind raspberry pi computer development was to enable each and every school in the world to afford to have a computer in their lab. We know that personal computers have evolved a lot in past few decades, but the price of a minimum computer system which can be used is still much costly and not every single individual can afford it. So Raspberry Pi was developed so that “schools” can afford it. And not only schools but any individual should be able to afford it. They achieved this by offering a complete computer that can run Linux operating system at a price of 35 USD. And you might get as much information as you need from the official raspeberry pi website here

So let’s get down to what this tutorial is about, and that is installing the operating system on raspberry pi. As it’s clear that raspberry pi is a computer and not a microcontroller, its obvious that it can install operating systems just like we do install on our computers. Exactly like you can install ubuntu/windows 10 on your computer, you have a choice of installing one of the may be supported OS’s for your raspberry pi. Raspberry Pi has the number of different supported Operating systems including the raspberry pi foundation’s own Raspbian. Some of the most popular operating systems for raspberry pi are

Raspbian

Ubuntu Mate, a media center OS

OpenELEC, again a media center

RetroPi, retro gaming supported OS

Windows 10 IoT Core

Additionally there’s also an interesting Linux distribution called Kali which is used in digital forensics. More about Kali linux can be read from this interesting tutorial here

while all of these operating systems have their own use cases, we always recommend using raspbian to any new developer/student who is just having hands on the raspberry pi computer. All the projects we do here at kitflix, we use only raspbian because it’s simple, lightweight and most importantly, it’s official. So let’s see how you can install Raspbian into your operating system.

Step 1 Download the OS

If you go to the website address here or https://www.raspberrypi.org/downloads/

You can see that raspbian is available to download in 2 formats

NOOBS, new out of the box software, a compressed archive file
Raspbian, a bin file

For all those who are just getting started with raspberry pi, I’d prefer using the NOOBS, it’s basically an installer which assists in the entire installation process of a raspberry pi. So download the package by clicking on NOOBS. Once you click on NOOBS, you’ll see 2 options for downloading, I’d say just stick to NOOBS instead of NOOBS Lite if you’re just getting started. So start downloading NOOBS for raspberry pi.

Once you download the package somewhere in your system, you’ll get a simple .zip file.

Basically zip file means a compressed version of lots of file combined together to make it easier to download or upload from the internet. So when you download the zip file, you need to extract it or unpack it and get all the files present inside it. Using a suitable program like Winrar or WinZip, extract the contents of the zip file into a folder.

raspberry pi OS installation zip file extract

After extracting the contents of the zip file, you’ll get the contents of the zip file in a folder, see below

raspberry pi operating system installation noobs

upon opening that folder you can see all the individual files and folders needed for operating system installation for raspberry pi.

Step 2 Prepare SD Card

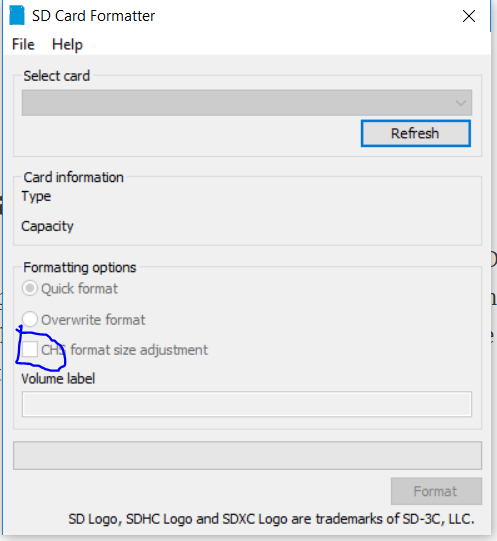

The next thing to do is then to copy the contents of this folder to the SD Card and to do it, first you need to prepare the SD Card for your Raspberry Pi. Just take a new SD card and format it using the SD Formatter tool found here. While formatting the SD card make sure to check the options shown below. Make sure you check this button which says “format size adjustment”

Step 3 Copy the Contents to SD Card

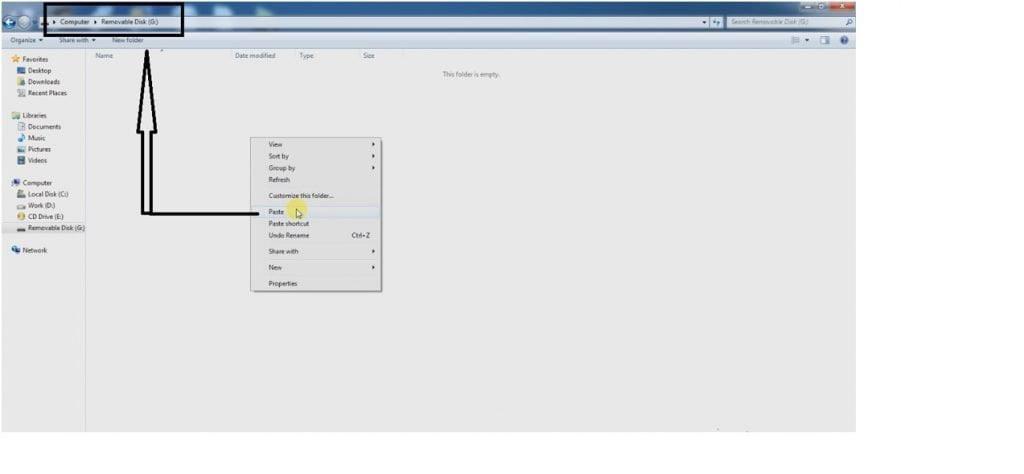

As shown in below pics, copy the contents of the folder NOOBS onto the formatted SD Card, make sure that you copy all the files and folders “as is” on to the root location of SD card, and not in any folder as shown below

See below, this is what I mean by saying Root folder of SD Card

Step 4 Raspberry pi setup

Now, its time to insert this SD card onto the raspberry Pi. For booting up raspberry pi, you’ll need below things for the specified purpose

Raspberry Pi Computer Board
SD card with copied noobs folder contents as shown above
HDMI – VGA converter, if you’re having a VGA monitor you wish to use
HDMI – HDMI cable, if you’re having an HD TV which you want to use
USB Keyboard and Mouse, or wireless keyboard mouse combo
+5v micro USB mobile phone charger rated 2 Ampere or more
Excitement for making new things happen!!!

Step 5 Start installing

Once you do all the things mentioned above and make their interconnections, power on the raspberry pi and the installation will begin itself. the screen like below comes which shows you the options to choose from. Generally, NOOBS contains one or more operating systems that can be installed on the raspberry pi. Select Raspbian(Recommended) here and depending on which country you live in, accordingly select the keyboard layout here itself. And once done, click install

After this, the installation process will continue itself, and there’s not much you can do with the process itself, all you need to do is either look at a screen for coming 10-15 mins, or grab a coffee for yourself or check your messages meanwhile

Step 6 Post-installation

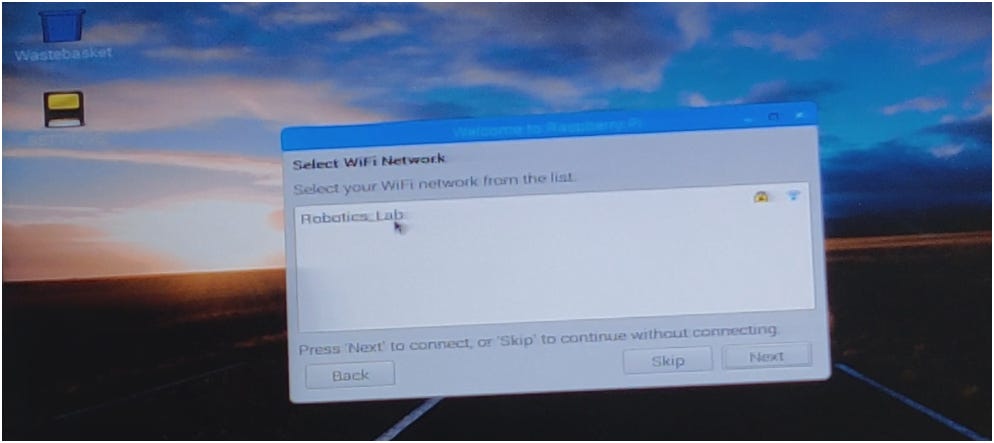

Now if all went well including your coffee, the Raspberry pi must have been rebooted and the raspbian operating system will start and a welcome screen like below will be seen. Remember, all the steps henceforth are optional but recommended to make it easier for you to use the raspberry pi

Set the country, in the first step, set the country where you live and the time zone

Next, it’ll ask you to choose a new password. Remember, by default the username and password are

User name: pi

Password: raspberry

in the coming step, it’ll as you to change the password, we personally prefer making the password as “pi”. So our username and pwd both will be “pi”. you can choose anything you want here
